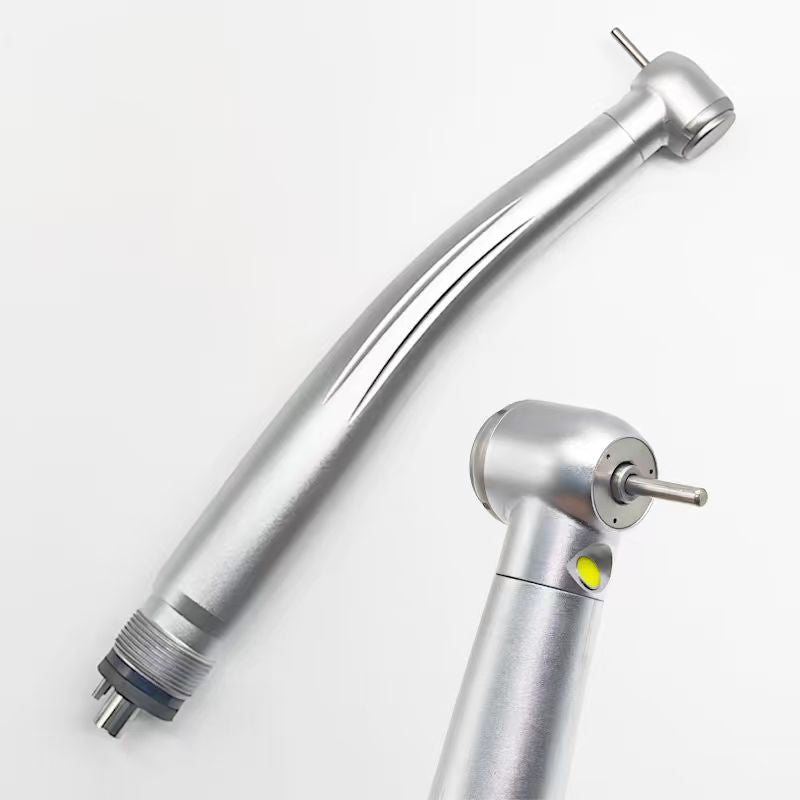

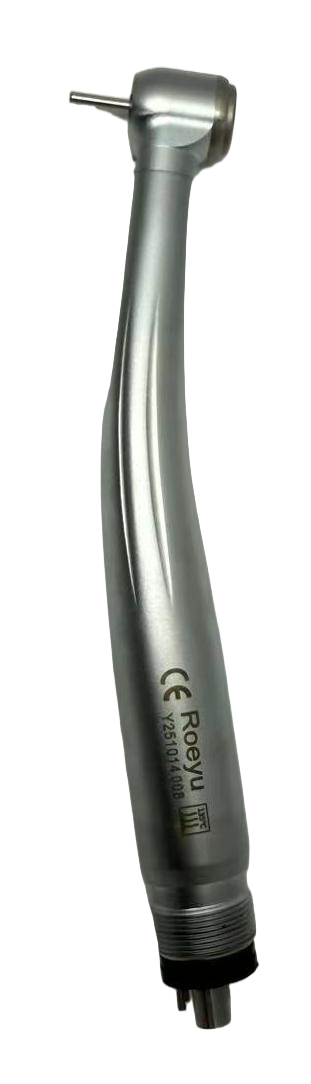

Designed for animal dentistry – Balanced, slim body for easy access to canine and feline oral cavities.
-
Push-button bur release – Quick, one-handed bur changes; accepts standard FG burs (ISO 1.59–1.60 mm).
-
Stable performance – Operates at the recommended air pressure 0.18–0.22 MPa at the handpiece (or 0.20–0.25 MPa at the dental unit when a handpiece gauge isn’t available) to reduce bur run-out and bearing wear.
-
Autoclavable – Handpiece is steam-sterilizable up to 135 °C (per symbols on the manual/packaging).
-

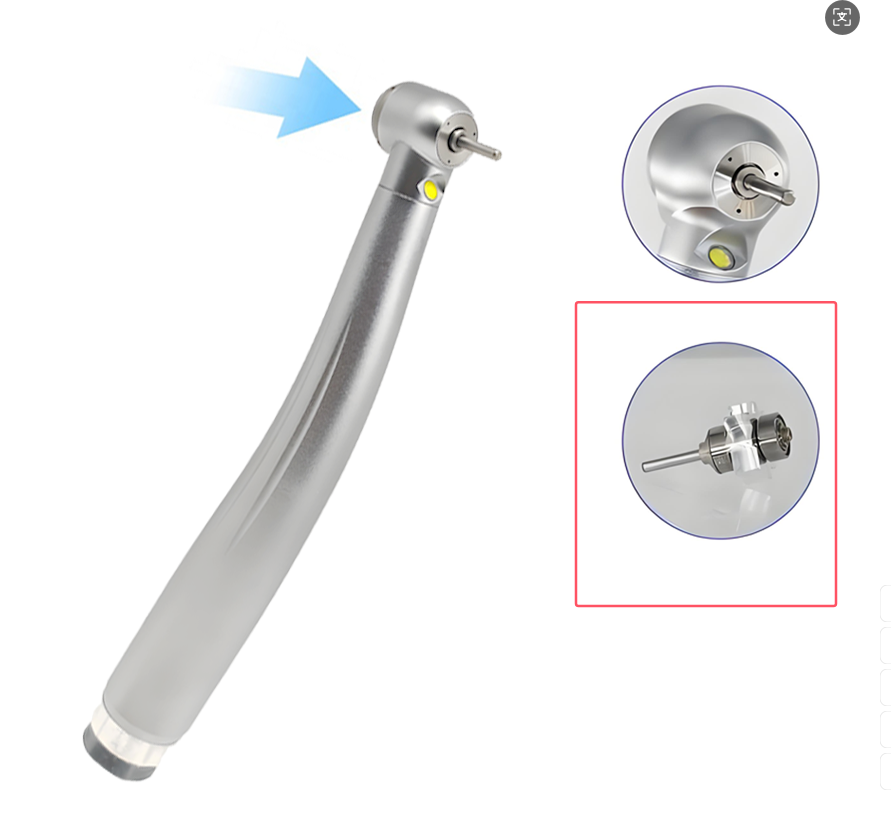

Extra value – Supplied with one spare turbine cartridge (shown in photos) for quick maintenance and minimal downtime.
-
Clear instructions – Illustrated operation manual included; packaged in a hygienic hard case.
Specifications
-
Chuck type: Push-button
-
Compatible bur shank: FG / ISO standard 1.59–1.60 mm (insert fully to the stop)
-
Recommended driving pressure: 0.18–0.22 MPa at the handpiece; 0.20–0.25 MPa at the unit if no handpiece gauge is used
-
Sterilization: Steam autoclave up to 135 °C
-
Use: Veterinary use only
What’s in the Box
-
1 × High-speed air turbine handpiece (push-button)
-
1 × Spare turbine cartridge
-
1 × User/operation manual
-

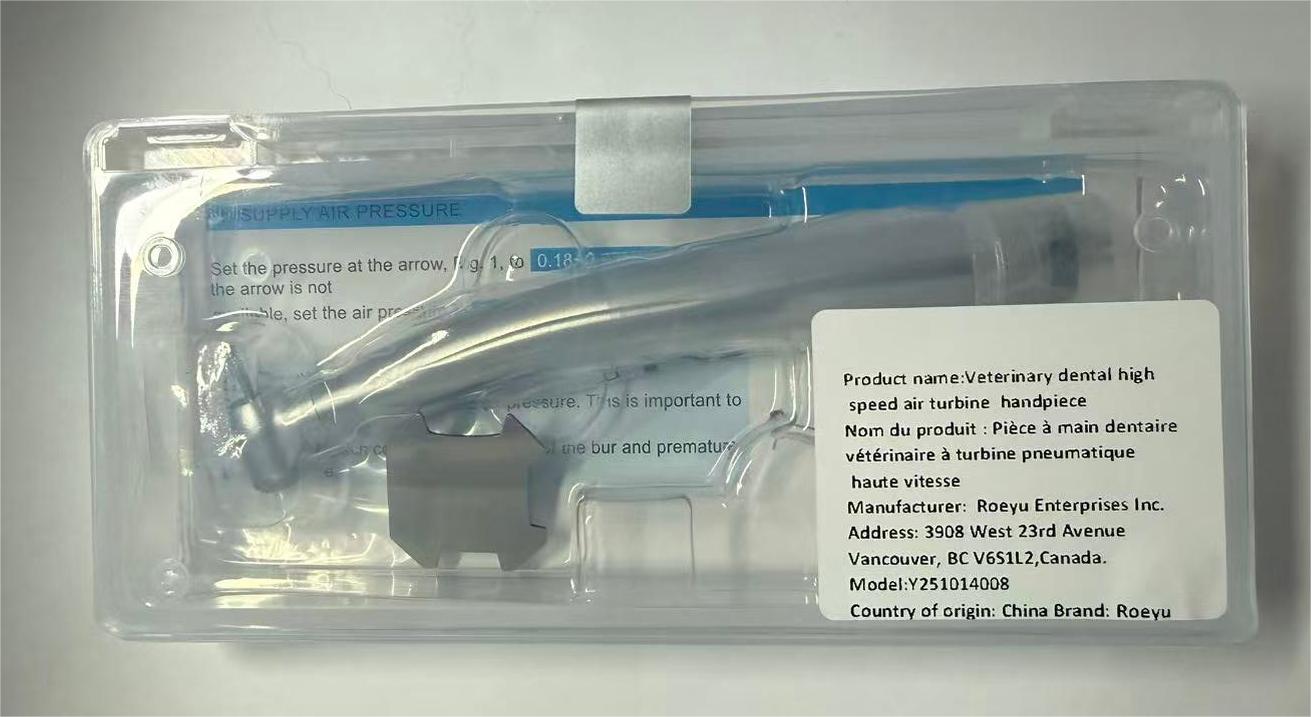

1 × Protective plastic storage case
Quick Start (from included manual)
-
Connect the handpiece to the dental unit and set air pressure to 0.18–0.22 MPa at the handpiece (or 0.20–0.25 MPa at the unit if a handpiece gauge isn’t available).
-
Insert a standard FG bur straight into the chuck until it stops. Verify it’s held firmly.
-
Run the handpiece briefly off-mouth to check smooth rotation.
-
After use, remove the bur, clean, dry, and autoclave up to 135 °C.
Care & Safety Notes
-
Use only straight, undamaged, standard-length FG burs; inserting short or damaged burs can loosen during use.
-
Do not exceed the recommended air pressure; over-pressure increases heat and bearing wear.
-
Never operate without a bur/test bur inserted.
-
Replace the turbine cartridge if performance drops or noise increases.
-
For professional veterinary use only.
